GOLDGRUBE ®

The GOLDGRUBE ® is a patented proprietary development for the separate storage of feces and urine in one container.

Our system complies with the standard of DIN 30762 „Prefabricated sanitation systems without connection to water supply and sewage system – Requirements and product features“ and is therefore state of the art. The basic concrete tank is also a regulated construction product (DIN EN 206-1, DIN 1045-2 and -4).

We have developed different sizes and variations to meet the needs of our customers. The heavy, large concrete design is a real alternative, especially for public toilets and residential buildings.

Skizze einer Goldgrube im Boden. Die Goldgrube ist ein Betonbehälter mit 2 Kammern. Auf dieser befindet sich eine Bodenplatte mit der unterschiedlich großen Ausgängen für die verschiedenen Ausscheidungen. sowie der Entnahmeöffnung.
GOLDGRUBE® / Concrete

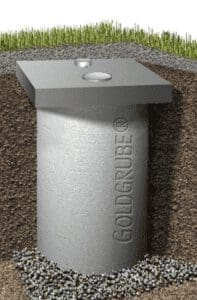

GOLDGRUBE ® made of concrete

The GOLDGRUBE ® concrete consists of a tight, monolithic concrete tank (according to DIN V 4034-1) with base – the basic tank, with installed internal septic tank and the concrete plate.
This variant  is statically highly loadable. It is installed in the ground, is buoyancy-proof and can be also designed to be flood-proof.
The foundation plate is prefabricated in the factory with all necessary pipes and openings. The tank is placed in the construction pit by the delivery truck, and once the pit has been backfilled, the plate is placed on top with a positive fit.

Benefits and features of the TTB GOLDGRUBE ®

The GOLDGRUBE ® is environmentally friendly and sustainable, economical and safe for operators and comfortable and hygienic for users.

Auf dem Foto ist eine Goldgrube in einem ausgehobenen Loch zu sehen.
Inserted GOLDGRUBE with round concrete slab
  • Self-sufficient: water, waste water and electricity connection not required
  • Power supply for lighting (optional) and ventilation possible via photovoltaic system
  • Depending on location, low construction costs
  • Three sizes (small, medium, large)
  • Toilet systems can be combined in any size and number
  • High static load-bearing capacity, can be installed under or in building floor slabs
  • Approvable (regulated building product), even in protection zones
  • Complies with DIN 30762 and the Product Safety Act
  • Buoyancy-proof and submersible (optional)
  • Barrier-free size in accordance with DIN 18040 (optional)
  • With hand wash basin, self-sufficient water supply and waste water treatment possible
  • Can be relocated with reasonable effort

  • Hygienic: no toilet odors, no insects
  • User-friendly: no flushing, litter or chemicals

  • Low disposal volumes per emptying (max. 4 m³)
  • No waste water produced by the toilet
  • Can be emptied with standard small vacuum vehicles
  • Up to 9,000 uses per emptying
  • Or for up to 6 residents with approx. one emptying per year
  • Discharge opening also possible outside the building

Construction types of the GOLDGRUBE ®

There are various installation options. We provide you with these under data sheets – German only.

The basic tank is always available with a round or square plate on top. You can also see various possible toilet room installations here.

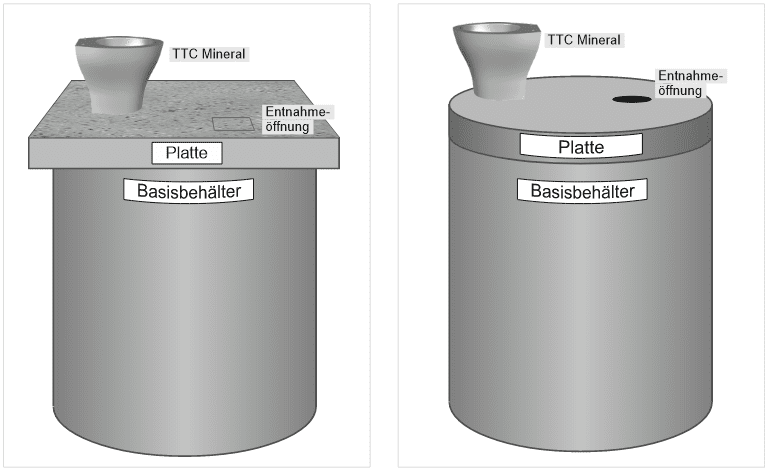

Die Goldgrube mit einer runden oder eckigen Platte nebeneinander.
The GOLDGRUBE with square or round top
Auf der Skizze ist eine einzelne Toilette in einem eigenen Raum abgebildet. Unter dem Toilettenstuhl ist eine Goldgrube. Eine Entnahmeöffnung ist im Raum.
Single toilet room
Version with two separat rooms
Auf der Skizze ist eine einzelne Toilette in einem eigenen Raum abgebildet. Unter dem Toilettenstuhl ist eine Goldgrube. Eine Entnahmeöffnung ist außerhalb des Raumes im Freien.
Single toilet in a building

Overview: GOLDGRUBE ® versions

The following table shows the different versions of the GOLDGRUBE ®. All versions comply with the DIN 30762 standard and can be used in both private and public areas. The usage data n are average values from specialist literature. We will be happy to help you make the right choice.

These concrete versions can be integrated into a house or set up as a “stand-alone” solution. They have either a round (e.g. GOLDGRUBE ® 1500) or rectangular slab (e.g. GOLDGRUBE ® 150×150). They can have three different surface structures: concrete, partially concrete or finished floor.

The data sheets provide further details around the different versions of the GOLDGRUBE®. Note that this data sheets are only in German.

Table 1
NameSize
OC²
Volumen
(rounded)
Diameter
Main container
Installation depth (total)Max. wall thickness (bldg integration )Plate width Plate depthDeliverable house
GOLDGRUBE 1300Small2.80021,00 m³1,30 m1,70 m20 cm1,30 m1,30 mn.a.
GOLDGRUBE 150×150Small2.80021,00 m³1,30 m1,70 mn.a.1,50 m1,50 mLÄRCHE
GOLDGRUBE 1500Medium4.80031,75 m³1,50 m1,95 m50 cm1,50 m1,50 mn.a.
GOLDGRUBE 170×170Medium4.80031,75 m³1,50 m1,95 mn.a.1,70 m1,70 mLÄRCHE /
PANEEL
GOLDGRUBE 1800Large9.00063,25 m³1,80 m2,25 m80 cm ⁴1,80 m1,80 mn.a.
GOLDGRUBE 190×190Large9.00063,25 m³1,80 m2,25 mn.a.1,90 m1,90 mLÄRCHE /
PANEEL
GOLDGRUBE 230×235
(GG 240×245)
Accessiable³9.00063,25 m³1,80 m2,25 mn.a.2,30 m
(2,40 m)⁵
2,35 m
(2,45 m)⁵
LÄRCHE /
PANEEL
GOLDGRUBE 190×290Facilities 19.000n.a.3,25 m³1,80 m2,25 mn.a.1,90 m2,90 mLÄRCHE /
PANEEL
GOLDGRUBE 240×290Facilities 29.000n.a.3,25 m³1,80 m2,25 mn.a.2,40 m2,90 mLÄRCHE /
PANEEL

¹ number of uses with average quantities of feces and urine per use.

² private building, number of occupants at one annual emptying

³ Movement areas according to DIN 18040-1

⁵ For self-build toilet house with wall thickness >6 cm

⁴ If more than one commode chair is connected, the wall thickness varies:

  • two toilet chairs on one floor: 20 cm
  • two toilet chairs on two floors: 70 cm
